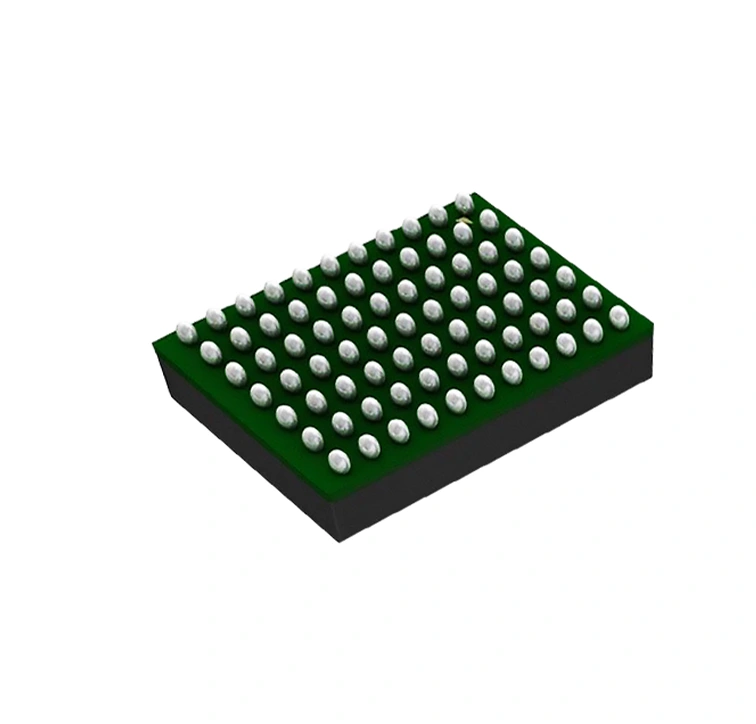

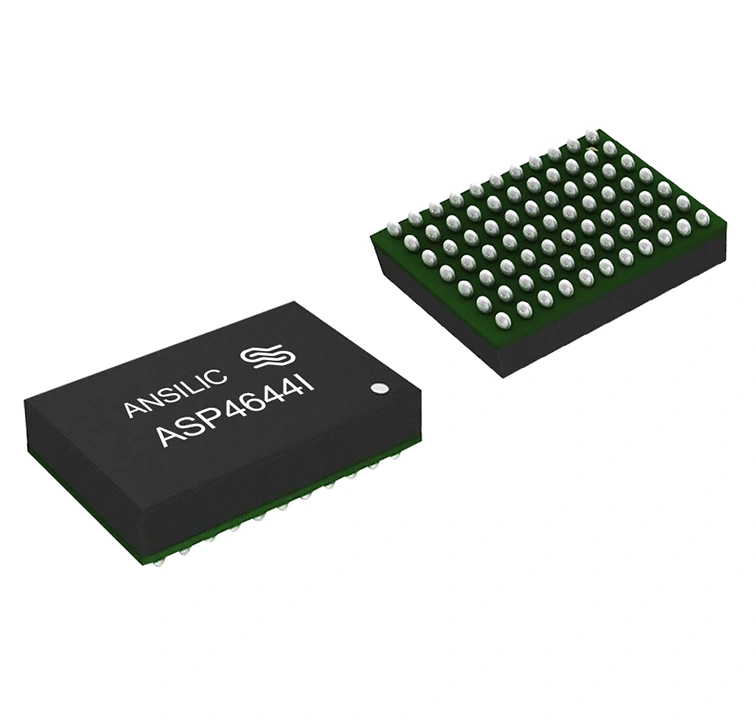

Power drive-ASP4644I

ASP4644I is a power management chip developed by Ansilic, fully pin-to-pin compatible with the LTM4644, boasting high efficiency, low ripple and high current driving capability. Its key specifications including power conversion efficiency, output current and input/output voltage range are identical to those of the LTM4644, while its ripple performance under typical operating conditions surpasses that of the LTM4644.

This chip supports an input voltage range of 4V to 14V and an output voltage range of 0.6V to 5.5V, delivering 4A output current per channel and up to 16A of total output current via four-channel paralleling. Only external input and output capacitors are required, effectively saving users’ PCB layout space.

Product Details

  • Input range: 4V~14V
  • Output range: 0.6V~5.5V
  • Typical Ripple: 4.5mV
  • 4 channels, 4A DC output current per channel; high current achievable via paralleling
  • Fast Transient Response
  • ±1.5% total output voltage error
  • Output Voltage Tracking
  • Frequency Synchronization
  • Over-Voltage Protection, Over-Current Protection, Over-Temperature Protection
  • Soft Error Protection Technology




  • High Security: IO interfaces support power-off high impedance; Undervoltage protection; Overcurrent protection

典型应用

01

工业多路负载供电

工业控制板卡中 FPGA、DSP、MCU、传感器通常需要多路独立电压,传统方案需多颗单通道电源,占用板面积大、布线复杂。ASP4644 单芯片集成四路输出,每路可独立设定 0.6V~5.5V,4A 输出能力覆盖大多数工业负载,显著减少器件数量和 PCB 面积。
02

工业便携式仪器

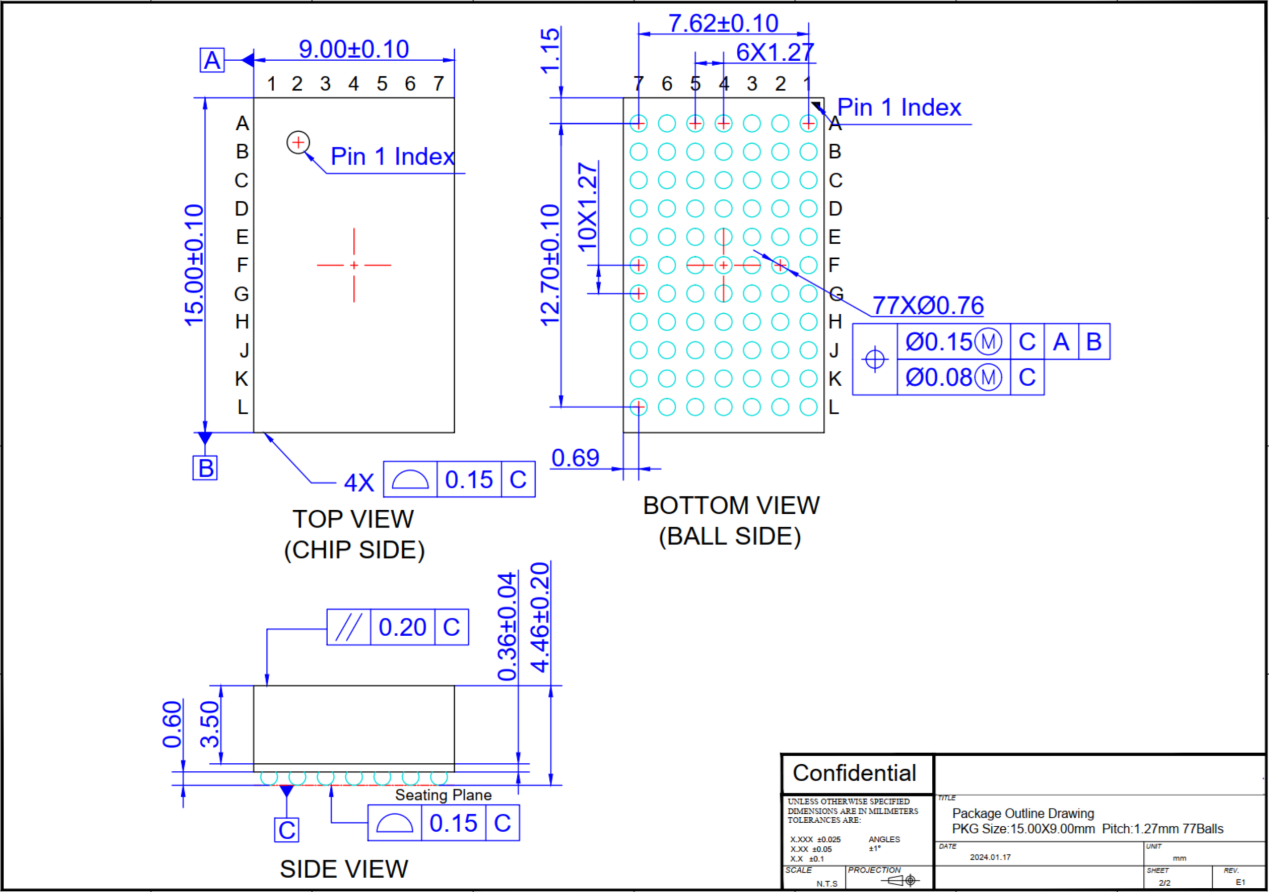

便携式工业仪器由电池供电,对电源体积和效率要求高,传统多路电源方案体积大、轻载效率低。ASP4644 四通道集成在 9mm×15mm BGA77 封装内,内置功率 MOSFET 和电感,外围只需少量电容电阻,DCM 模式在轻载时降低开关损耗,延长电池续航。
03

工业分布式电力系统

工业分布式供电中多路负载需要独立供电且要求低输入纹波,若各通道同相工作会导致输入电容需求和 EMI 增大。ASP4644 四通道之间预设相移,支持 2+2、3+1、4 通道并联,并联时各通道 COMP、FB、TRACK/SS 引脚相连即可均流,有效降低输入电容需求和 EMI。
04

工业数据采集系统

工业数据采集系统中 ADC、仪表放大器对电源噪声敏感,电源纹波会直接转化为测量误差。ASP4644 输出纹波典型值 4.5mV,电流模式控制具有良好负载/线性调整率,可为 ADC 参考电压和传感器激励提供稳定供电。
05

工业电池供电设备

工业电池供电设备要求轻载高效、突发负载能力强,传统方案轻载效率低导致续航短。ASP4644 支持 DCM 模式,轻载下进入跳周期工作降低开关损耗,单路 4A、峰值 5A 的输出能力可满足突发负载需求。
