Interface-ASM9047S

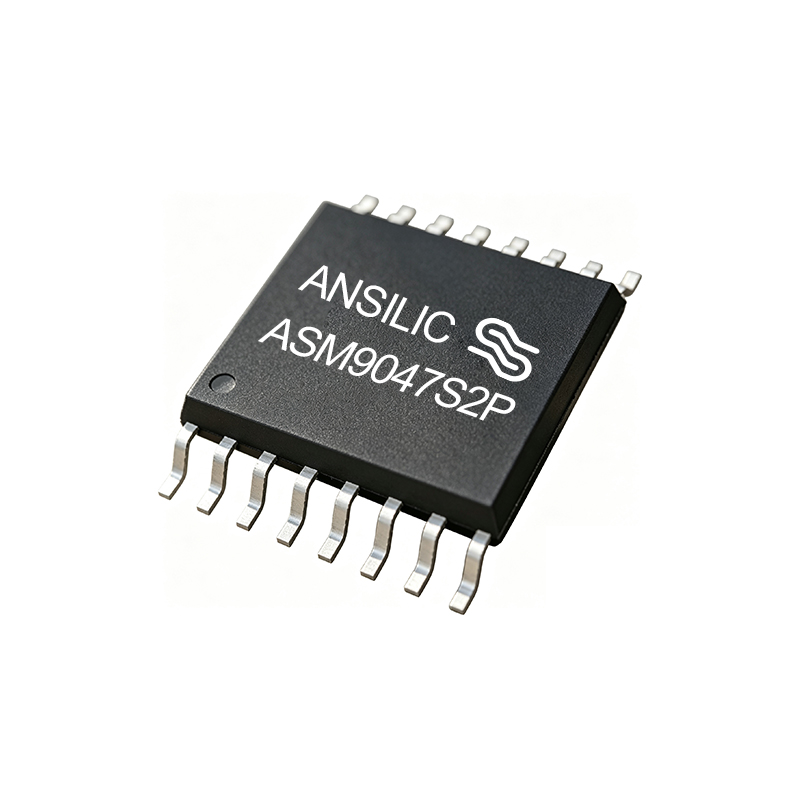

ASM9047S2P是厦门国科安芯科技有限公司推出的商业航天级四路CMOS差分 LVDS 驱动器，基于标准低压差分信号（LVDS）架构，可将TTL/CMOS 单端输入信号转换为±350mV标准差分输出，支持超400Mbps（200MHz）高速点对点数据传输。器件采用3.3V单电源供电，集成双通道使能控制逻辑，支持三态高阻关断输出，待机静态功耗仅13mW；具备超低差分偏移、短传播延时特性，信号完整性优异。产品搭载商用航天专用抗辐照加固工艺，搭配宽温域工作设计、高等级ESD防护，外围电路极简，无需复杂匹配电路，可完美适配高速长距离差分传输链路，广泛应用于商业航天载荷、核电控制系统、特种工业机器人、高速通信数据接口等对传输速率、环境可靠性、抗辐射能力要求严苛的高可靠场景。
Product Details
- >400Mbps（200MHz）转换速率
- 375ps最大差分偏移
- 1.26ns最大传播延时
- 3.3V供电
- ±350mV差分输出
- 低功耗（VCC=3.3V时静态13mW）封装: TSSOP20
- SEU: ≥37MeV.cm²/mg或10−5次/器件.天（商业航天级）
- SEL: ≥37MeV.cm²/mg（商业航天级）
- TID: ≥100krad（Si）（商业航天级）
封装类型：TSSOP16
| 代码 | 尺寸（毫米） | 尺寸（英寸） | ||
| 最小值 | 最大值 | 最小值 | 最大值 | |
| A(1) | 1.200 | 0.047 | ||
| A1 | 0.050 | 0.150 | 0.002 | 0.006 |
| A2 | 0.800 | 1.050 | 0.031 | 0.041 |
| b | 0.190 | 0.300 | 0.007 | 0.012 |
| c | 0.090 | 0.200 | 0.004 | 0.008 |
| D(1) | 4.860 | 5.100 | 0.191 | 0.201 |
| E(1) | 4.300 | 4.500 | 0.169 | 0.177 |
| E1 | 6.200 | 6.600 | 0.244 | 0.260 |
| e | 0.650(BSC)(2) | 0.026(BSC)(2) | ||
| L | 0.500 | 0.700 | 0.02 | 0.028 |
| H | 0.250TYP | 0.010TYP | ||
| θ | 1° | 7° | 1° | 7° |
抗辐照：
- SEU: ≥37MeV.cm²/mg或10−5次/器件.天（商业航天级）
- SEL: ≥37MeV.cm²/mg（商业航天级）
- TID: ≥100krad（Si）（商业航天级）
Product Manual
ASM9047S芯片数据手册V1.0.pdfRelated Products
