Interface-ASM232S

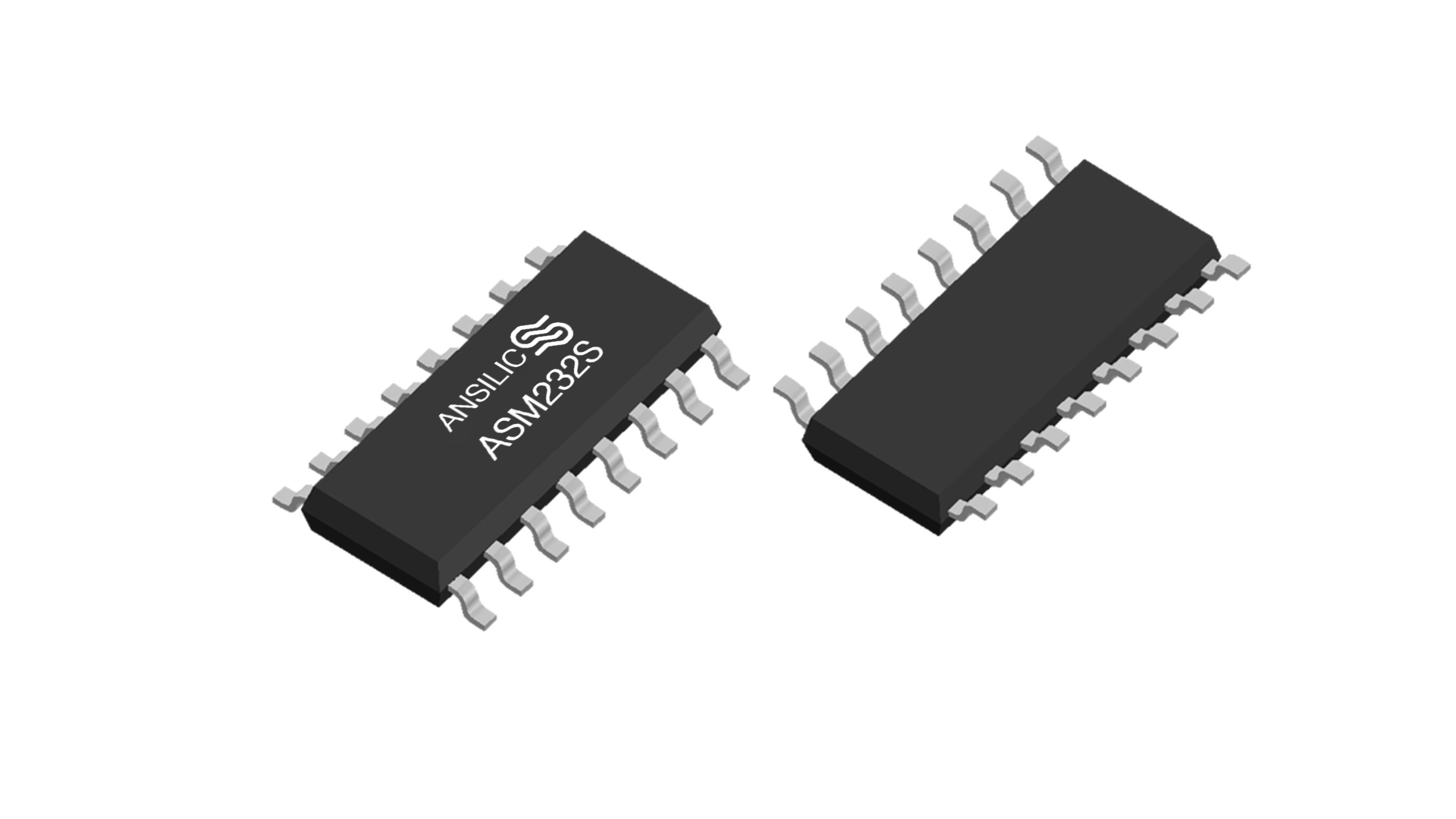

ASM232S is an RS232 communication interface chip developed by Ansilic, which supports 3.0V to 5.5V power supply, complies with IEC61000 ESD protection standards, and includes 2 transceivers, each receiver can convert TIA/RS232 input to TTL/CMOS level, and the device can accept ± 28V input voltage and operating data signaling rate up to 250kbps. The ASM232 is available in an SOP16 package and requires only four external 0.1μF capacitors. It adopts an anti-irradiation reinforcement design, which can be used in high-security interface communication scenarios such as commercial aerospace and special industry.
Product Details
- Wide voltage input range: +3V to +5.5V from a single supply
- Support 2 sets of transceivers
- Data rate: 250kbps
- Bus pin ESD
- ±12kV(IEC61000-4-2)
- ±15kV(IEC61000-4-2)
- ±17kV(HBM)
- Low power design
- Meets the requirements of TIA/EIA-232-F and ITU V.28 standards

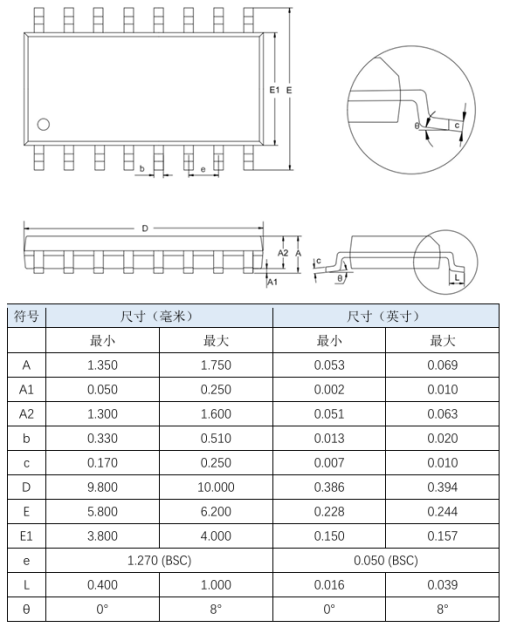

- Package: SOP16
- Operating temperature range: -40°C to 125°C
- SEU: ≥75MeV.cm²/mg or 10−5 times/device. Days (Commercial Aerospace Grade)
- SEL: ≥75MeV.cm²/mg (commercial aerospace grade)
- TID: ≥100krad(Si) (commercial aerospace grade)
Solutions
New Energy Vehicles
Commercial Space
Robotics
Product Manual
ASM232数据手册V1.0.pdfRelated Products
View All New ProductsPower drive-ASP3605I

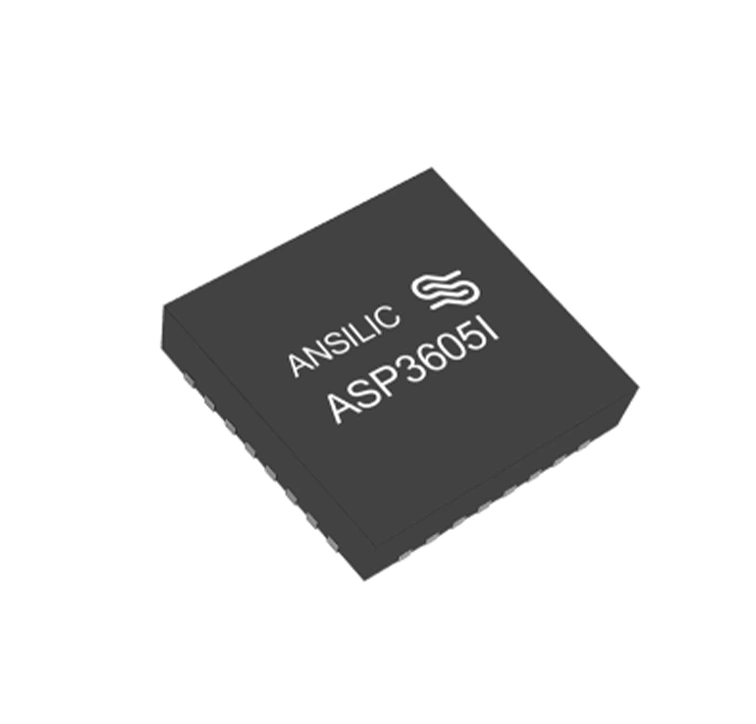

ASP3605I is a power management chip developed by Ansilic, fully compatible with LTC3605, featuring high efficiency, low ripple, and high current capability. The chip's specifications such as power efficiency, current, and input/output range are consistent with those of the LTC3605 chip. This chip supports an input voltage range of 4V to 15V and an output voltage range of 0.6V to 5.5V, with 4A output current per channel and a typical operating efficiency of 94%. it supports soft error protection.
Interface-ASM1042I

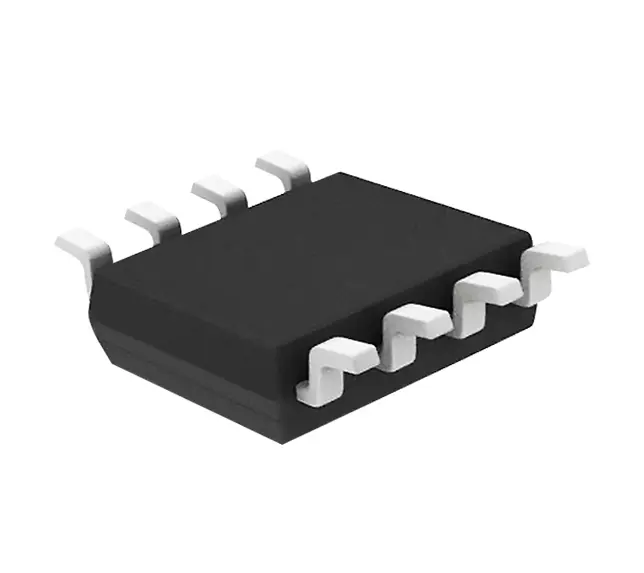

The ASM1042I is a high‑performance CAN FD transceiver designed and manufactured by Ansilic. It supports data rates up to 5 Mbps, offers a ±30 V common‑mode input range, and provides ±70 V bus fault protection. The device is compatible with both 3.3 V and 5 V I/O levels. It’s suitable for a wide range of industrial and safety critical applications including robotics, automation equipment, and medical systems. ASM1042I is drop in compatible with TJA1042 and TCAN1042.
Power drive-ASP3605A

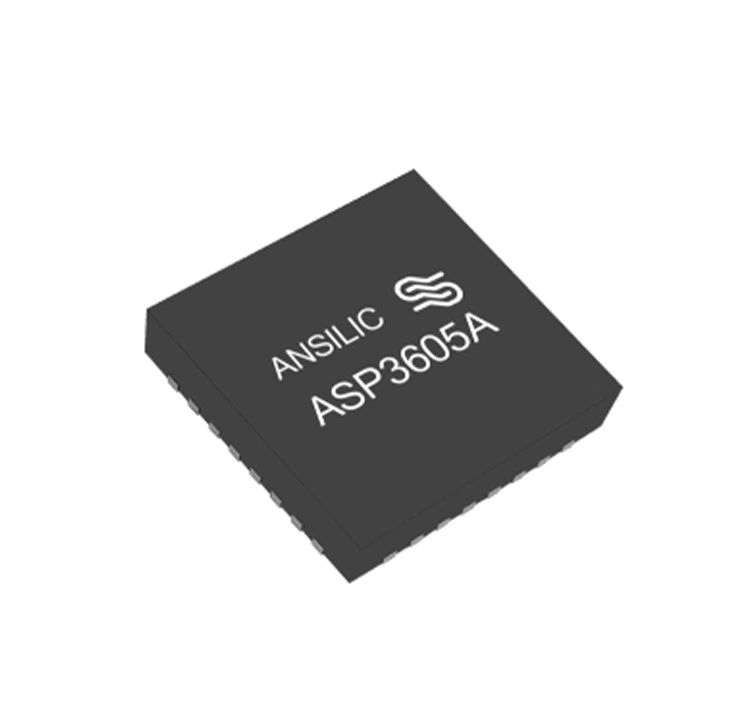

ASP3605A is a power management chip developed by Ansilic, fully compatible with LTC3605, featuring high efficiency, low ripple, and high current capability. The chip's specifications such as power efficiency, current, and input/output range are consistent with those of the LTC3605 chip. This chip supports an input voltage range of 4V to 15V and an output voltage range of 0.6V to 5.5V, with 4A output current per channel and a typical operating efficiency of 94%. It supports soft error protection and can provide AEC-Q100 grade 1 automotive specification certification.
