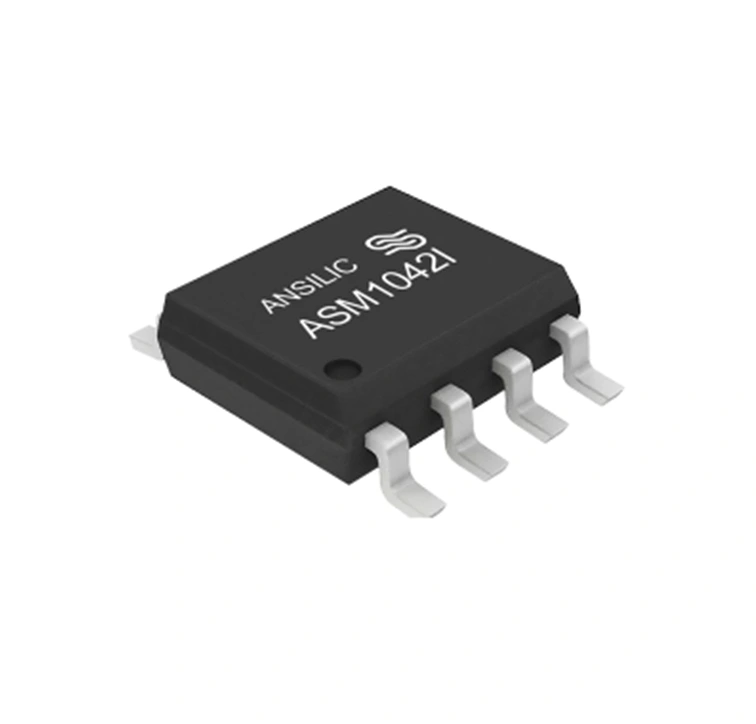

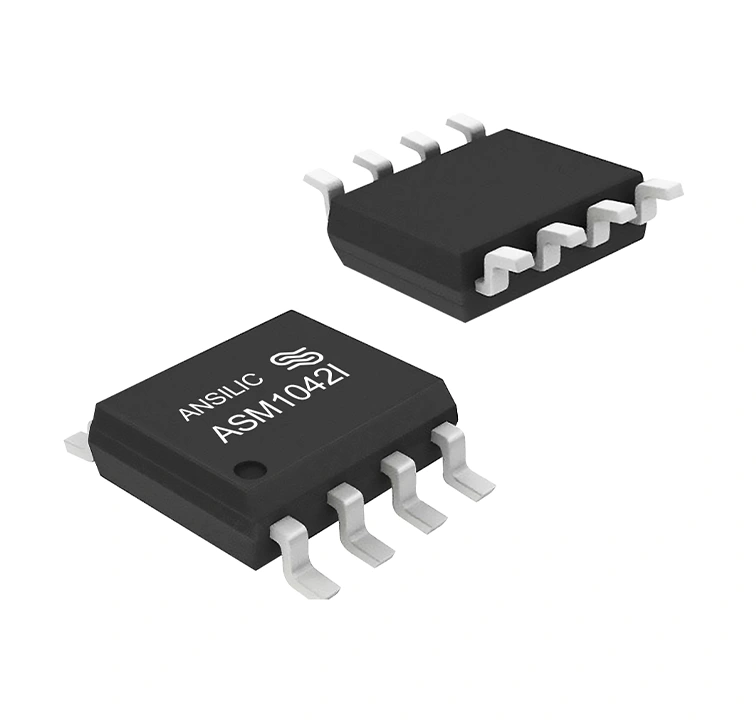

CAN Transceiver - ASM1042I
The ASM1042I is a high‑performance CAN FD transceiver designed and manufactured by Ansilic. It supports data rates up to 5 Mbps, offers a ±30 V common‑mode input range, and provides ±70 V bus fault protection. The device is compatible with both 3.3 V and 5 V I/O levels. It’s suitable for a wide range of industrial and safety critical applications including robotics, automation equipment, and medical systems. ASM1042I is drop in compatible with TJA1042 and TCAN1042.
Product Details
- Low‑power standby mode with wake‑up support
- Supports 3.3 V / 5 V MCU I/O
- High‑speed CAN with 5 Mbps CAN FD capability
- Excellent electromagnetic immunity
- High‑impedance bus behavior when unpowered
- Glitch‑free bus and RXD behavior during power‑up and power‑down
- Receiver common‑mode voltage: ±30 V
- Typical loop delay: 110 ns
- IEC ESD protection up to ±15 kV
- Bus fault protection: ±70 V
- Undervoltage protection on VCC and VIO
- TXD dominant timeout (DTO), supporting data rates down to 10 kbps
- Thermal shutdown and over‑temperature protection
- High security
- IO interface supports high resistance for power failure
- Over-temperature protection
- Undervoltage protection
Solutions
New Energy Vehicles
Commercial Space
Robotics
Product Manual
ASM1042I Datasheet V1.1.pdf
—— For small batch purchase, please click to enter the online mall to place an order.
—— For large quantities of purchases, please contact us directly via online consultation or phone (0592-6228-898).
