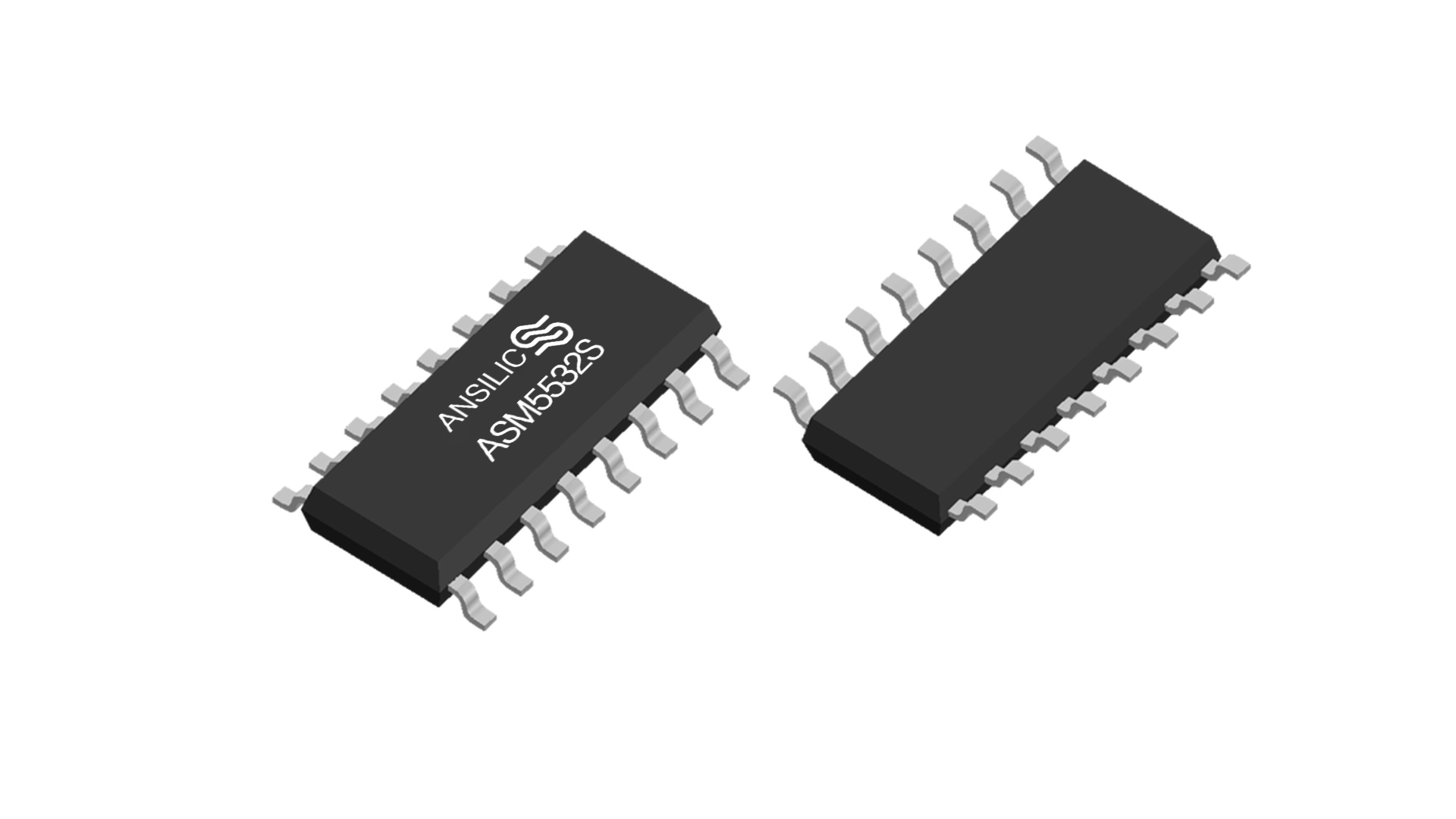

Interface-ASM5532S
ASM5532S is an LVDS low-voltage differential signal receiver chip developed by Ansilic, compatible with SN55LVDS32. The chip complies with ANSI TIA/EIA-644 standard, supports 3.3V power supply and a maximum communication rate of 150Mbps. ASM5532S adopts advanced radiation-hardened design and can be used in high-safety applications such as commercial aerospace and nuclear power plants.
Product Details
- Operates from a single 3.3V power supply
- Communication rate up to 150 Mbps
- Maximum differential input threshold: ±100 mV
- Power consumption: 60 mW (typical per receiver)
- Low-voltage TTL (LVTTL) logic output level
- Open-circuit fault protection
- SEU: ≥ 37 MeV·cm²/mg or 10⁻⁵ per device per day (Commercial Aerospace Grade)
- SEL: ≥ 37 MeV·cm²/mg (Commercial Aerospace Grade)
- TID: ≥ 100 krad(Si) (Commercial Aerospace Grade)

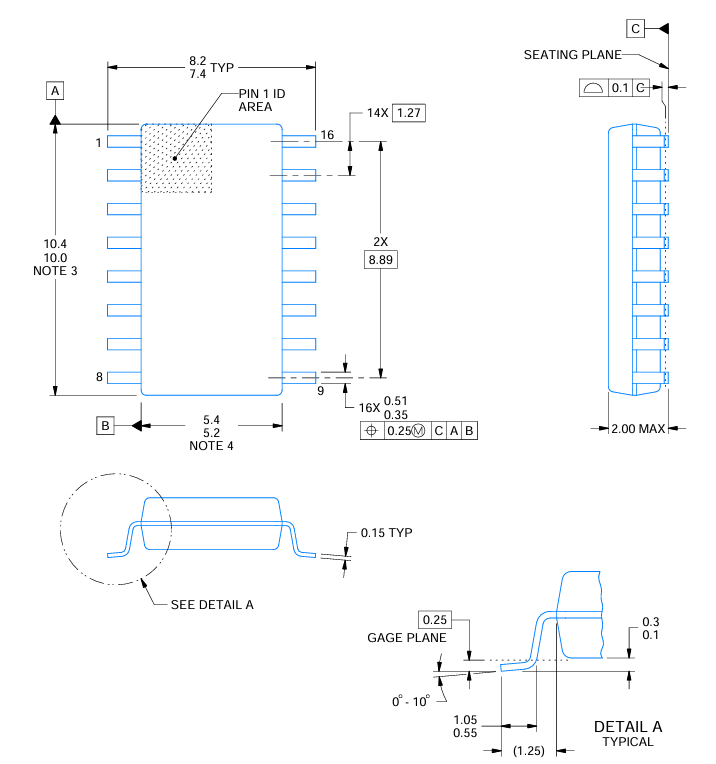

Package type: SOP16
- Radiation Hardness:
- SEU: ≥ 37 MeV·cm²/mg or 10⁻⁵ per device per day (Commercial Aerospace Grade)
- SEL: ≥ 37 MeV·cm²/mg (Commercial Aerospace Grade)
- TID: ≥ 100 krad(Si) (Commercial Aerospace Grade)
