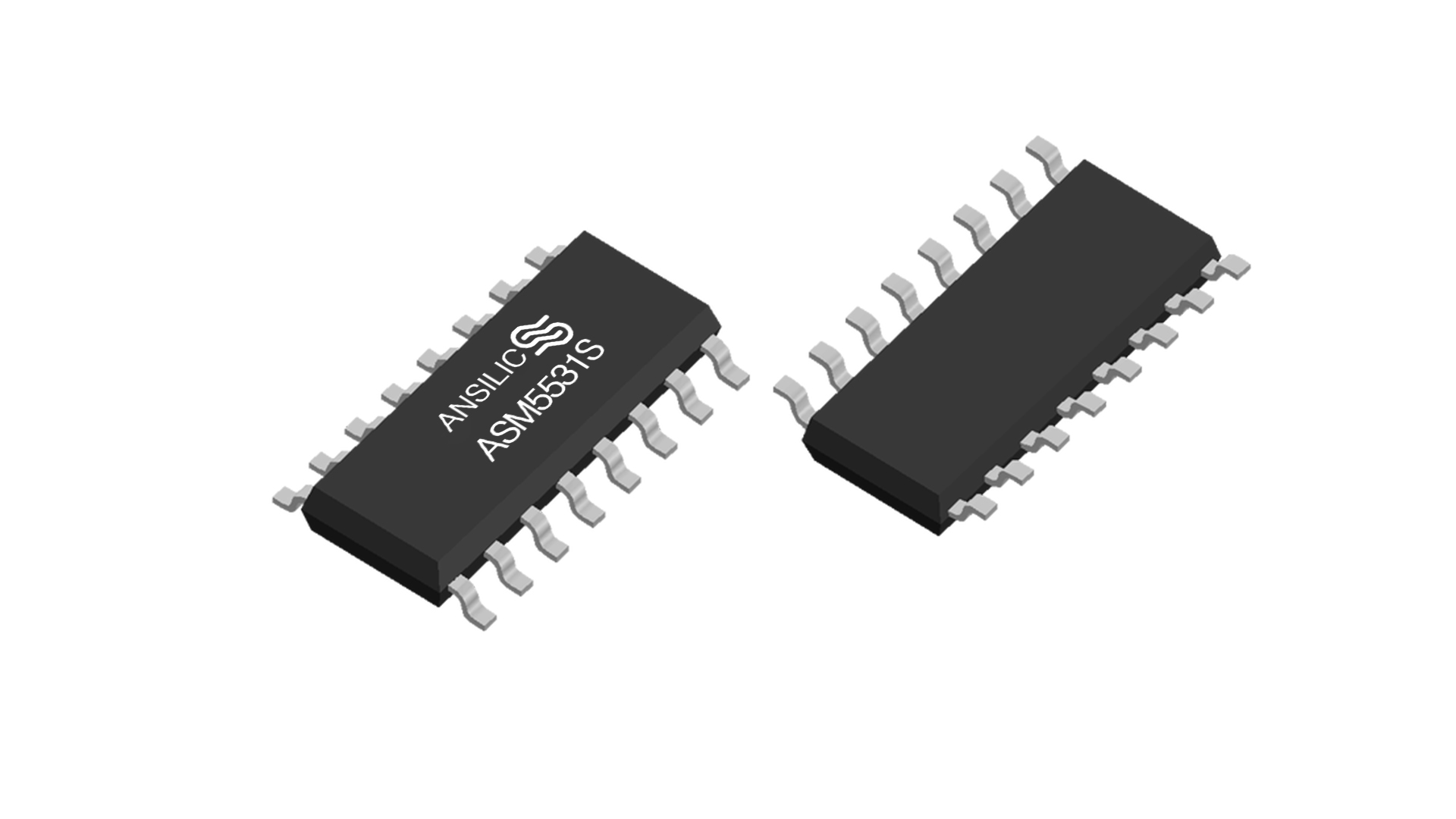

Interface-ASM5531S
ASM5531S is an LVDS low-voltage differential signal driver chip developed by Ansilic, compatible with SN55LVDS31. The chip complies with ANSI TIA/EIA-644 standard, supports 3.3V power supply and a maximum communication rate of 400Mbps. ASM5531S adopts advanced radiation-hardened design and can be used in high-safety applications such as commercial aerospace and nuclear power plants.
Product Details
- 满足ANSI TIA/EIA-644标准
- 采用 3.3 V 单电源供电
- 通信速率高达 400 Mbps
- 功耗 25 mW（每个驱动器的典型值）
- 低电压 TTL（LVTTL）逻辑输入电平
- SEU : ≥37Mev.cm2/mg或10−5次/器件.天（商业航天级）
- SEL : ≥37Mev.cm2/mg（商业航天级）
- TID : ≥100krad（Si）（商业航天级）

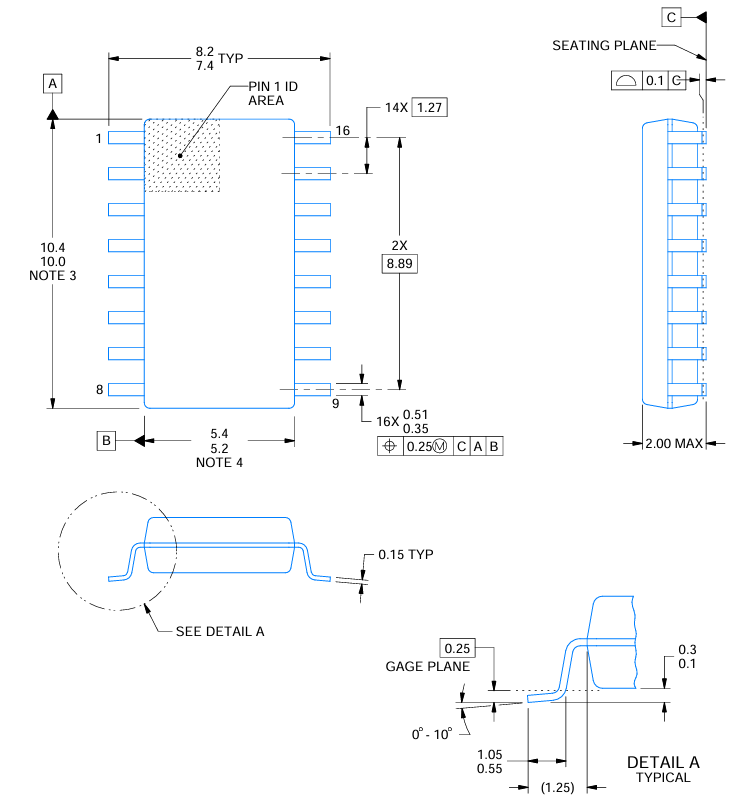

Package type: SOP16
- Radiation Hardness:
- SEU: ≥ 37 MeV·cm²/mg or 10⁻⁵ per device per day (Commercial Aerospace Grade)
- SEL: ≥ 37 MeV·cm²/mg (Commercial Aerospace Grade)
- TID: ≥ 100 krad(Si) (Commercial Aerospace Grade)
