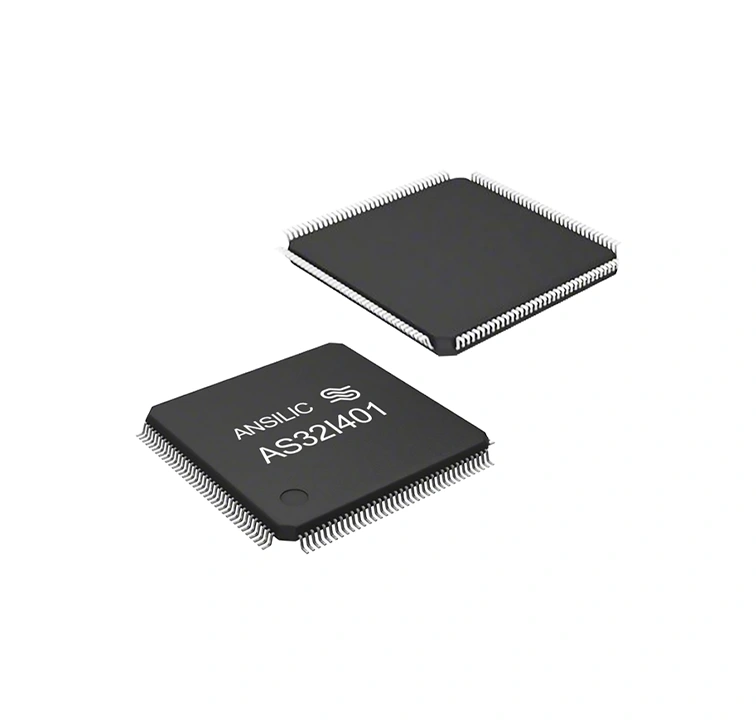

MCU-AS32I401
AS32I401 is an industrial-grade MCU chip developed by Ansilic, based on the RISC-V architecture. It features full independent control, high security, and a rich set of interfaces. Operating at a main frequency of 120MHz, it supports the RV32IMZicsr instruction set and interfaces including CAN FD, Ethernet, LIN, ADC, and DAC. It can be applied in high-safety demand scenarios such as robot joint control, special industrial applications, power systems, and military industries.
Product Details
- Core : 32-bit RISC-V core based on the RV32IMZicsr ISA.
- Operating Frequency : Up to 120 MHz.
- I/O System : Extensive I/O pin multiplexing supporting interfaces commonly used in aerospace, industrial, and automotive applications.
- DMA : Integrated multiple low-speed, high-speed, and dedicated DMA channels.
- Memory : 1 MB internal Flash, 16 KB I-Cache, and 16 KB DTCM, all supporting low-powe SECDED encoding.
- Safety Architecture : Features a single-cycle asynchronous dual-core lockstep architecture with fail-safe design, providing robustness against common-mode faults and supporting single-cycle error rollback.
- Data Integrity : On-chip storage and bus adopt low-power SECDED encoding for automatic error correction and detection.
- I/O Protection : External I/O interfaces support power-off high-impedance state.
- System Reliability : Critical system control modules adopt Triple Modular Redundancy (TMR) design.
- Clock System : Dual-redundant PLL with clock monitoring and automatic switching functions.

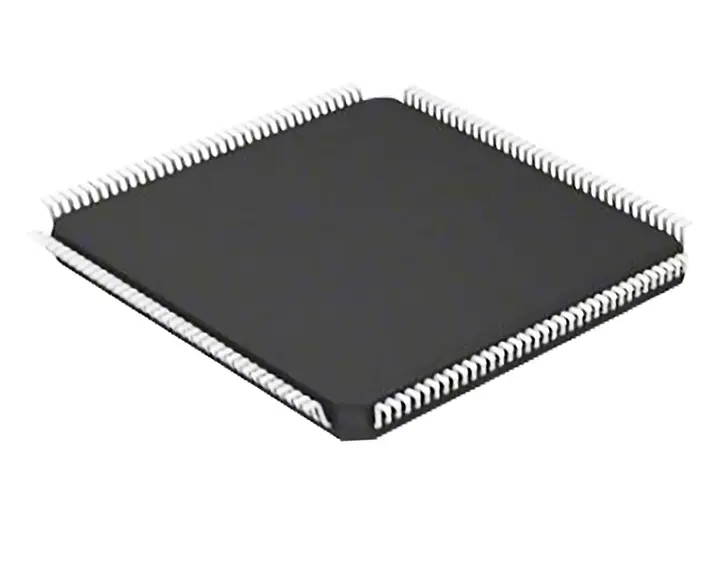

- Packaging process: LQFP144
- Dimensions: 20*20mm, pitch 0.5mm
- High security
- IO interface supports high resistance for power failure
- Over-temperature protection
- Undervoltage protection
Solutions
New Energy Vehicles
Commercial Space
Robotics
Product Manual
MCU Chip - AS32I401 Datasheet .pdf
—— For small batch purchase, please click to enter the online mall to place an order.
—— For large quantities of purchases, please contact us directly via online consultation or phone (0592-6228-898).
