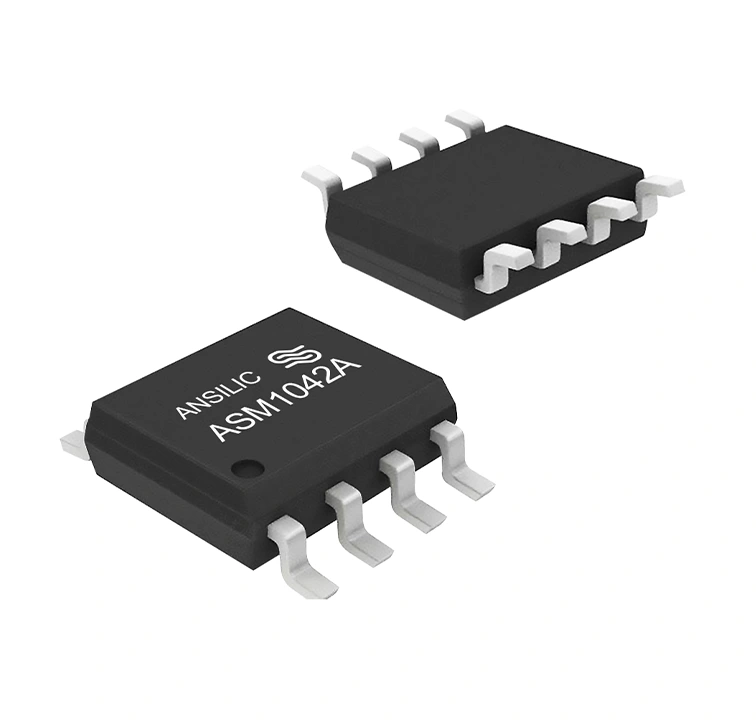

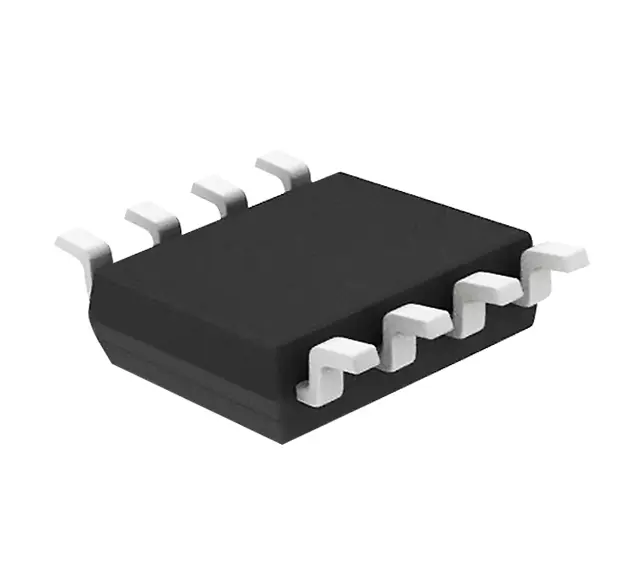

CAN Transceiver - ASM1042A
ASM1042A is a CANFD interface chip developed by Ansilic, featuring high data rate, high voltage tolerance, and strong IO compatibility. It supports a data rate of up to 5Mbps, a common-mode input voltage of ±30V, a bus fault protection voltage of ±70V, and is compatible with 3.3V and 5V MCU IO interfaces. Adopting a soft error protection design, it can be applied in high-safety application scenarios such as automotive, special industrial, and military fields. It has passed the AEC-Q100 automotive specification certification, with full compatibility with TJA1042 and TCAN1042.
Product Details
- Low-power standby mode with wake-up function
- I/O voltage range supports 3.3V and 5V MCU
- High-speed CAN, supporting 5Mbps CAN FD (Flexible Data Rate)
- High anti-electromagnetic interference capability
- Ideal passive behavior when unpowered
- Bus and logic pins are in high-impedance state (no load)
- No interference operation during power-up/power-down on bus and RXD output
- Receiver common-mode input voltage: ±30V
- Typical loop delay: 110ns
- IEC ESD protection up to ±15kV
- Bus fault protection: ±70V
- Undervoltage protection for VCC and VIO power terminals
- Driver dominant timeout (TXD DTO), data rate as low as 10kbps
- Thermal shutdown protection (TSD)
- Built-in over-temperature protection function
- High security
- IO interface supports high resistance for power failure
- Over-temperature protection
- Undervoltage protection
- Soft Error Protection: Adopt advanced soft error protection technology
- Automotive Qualification: AEC-Q100
Solutions
New Energy Vehicles
Commercial Space
Robotics
Product Manual
ASM1042A Datasheet V1.1.pdf
—— For small batch purchase, please click to enter the online mall to place an order.
—— For large quantities of purchases, please contact us directly via online consultation or phone (0592-6228-898).
