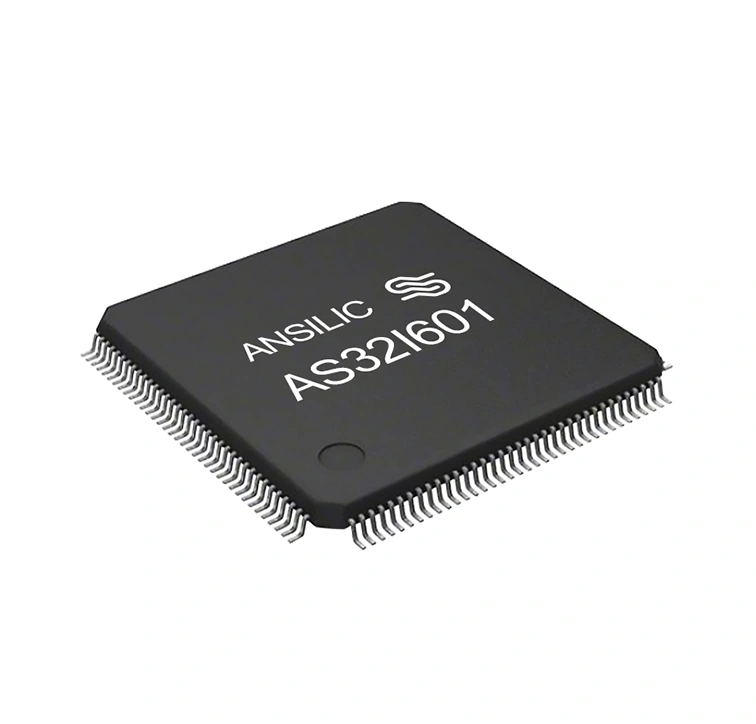

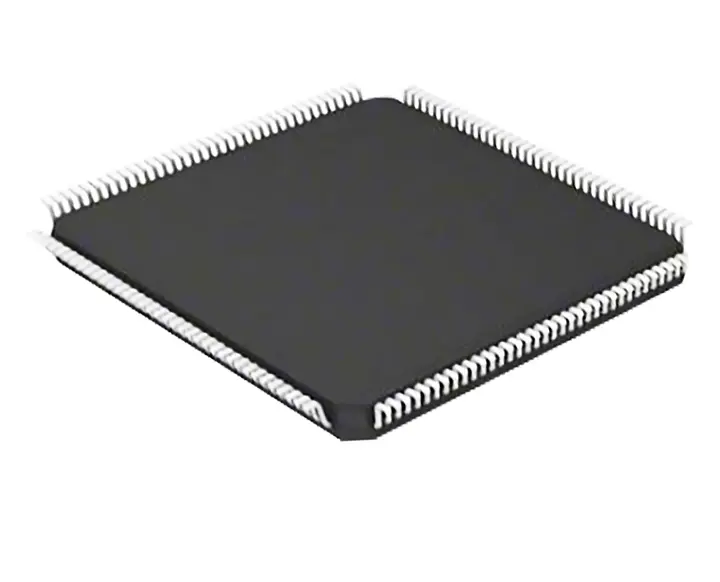

MCU Chip - AS32I601
AS32I601 is an industrial-grade MCU chip based on the RISC-V architecture developed by Ansilic, featuring complete independent controllability, high security, and rich interfaces. It supports the RV32IMAFDC instruction set with a main frequency of up to 180MHz, and supports interfaces such as CANFD, Ethernet, PWM, ADC, ACMP, and DAC. It can be applied in high-safety demand scenarios such as robot joint control, special industrial applications, power systems, and water conservancy projects.
Product Details
- Based on 32-bit RISC-V instruction set, main frequency up to 180MHz
- Supports multi-IO function multiplexing (more than 100 GPIO interfaces guaranteed)
- Built-in multiple low-speed, high-speed and dedicated DMA channels, with the number of channels ≥32
- 16KB Data Cache (DCache), 16KB Instruction Cache (ICache)
- 2MB internal PFlash, 512KB internal DFlash
- 512KB internal user SRAM
- External QSPI-Flash driver, supporting up to 16MB external flash memory with a maximum frequency of 80MHz
- Dedicated CRC calculation unit
- Supports overvoltage and undervoltage protection
- Supports overcurrent and over-temperature protection
- Soft error protection technology
- High security
- The system control module adopts redundant design
- IO interfaces support power-off high impedance
Solutions
New Energy Vehicles
Commercial Space
Robotics
AS32I601 chip design manual V1.1.pdf
—— For small batch purchase, please click to enter the online mall to place an order.
—— For large quantities of purchases, please contact us directly via online consultation or phone (0592-6228-898).
